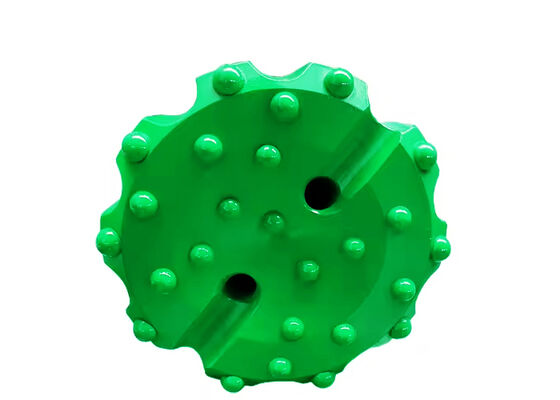

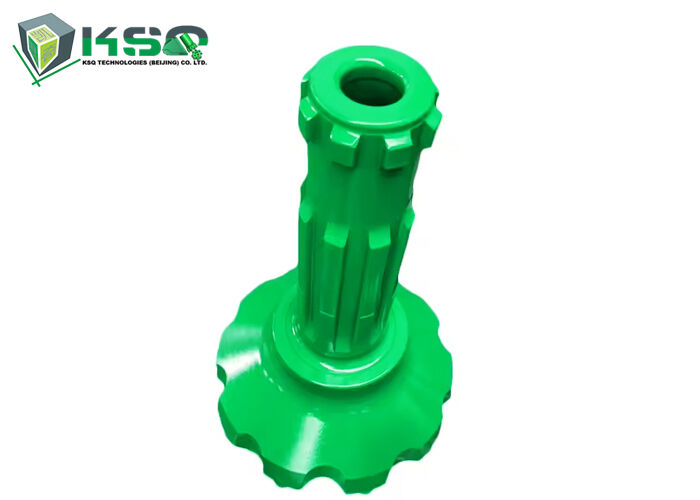

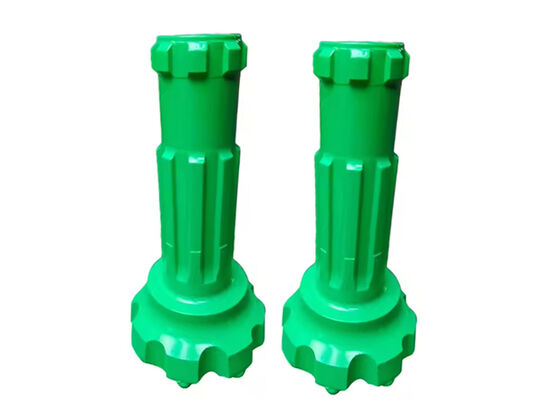

Name: Top Quality Long Life DHD340 DTH Hammer Bit For Hard Rock Water Well Mining Drilling Low High Air Pressure
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: DHD340
Price: 508.50 USD
Availability: InStock

Dom Produkty Narzędzia do wiercenia w kamieniu

Top Quality Long Life DHD340 DTH Hammer Bit For Hard Rock Water Well Mining Drilling Low High Air Pressure

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	MIROC
Orzecznictwo:	ISO
Numer modelu:	DHD340

Zapłata:

Minimalne zamówienie:	1
Czas dostawy:	20-30
Możliwość Supply:	3000

Kontakt

Szczegółowy opis produktu

Nazwa produktu:	4-calowy bit młotkowy DTH	Proces:	Kucie + obróbka skrawaniem + obróbka powierzchni
Twarz:	Płaski bit twarzy, wypukły bit twarzy, wklęsły bit twarzy	Tworzywo:	Stal węglowa
Używać:	Prace budowlane, Energia i górnictwo, kamieniołomy, wiercenie studni
Podkreślić:	DHD340 DTH hammer bit for hard rock , water well drilling hammer bit , mining drilling bit with high air pressure

Top Quality Long Life DHD340 DTH Hammer Bit

Designed for hard rock water well mining drilling with optimal performance across low and high air pressure applications.

DTH Drill Bit - Product Introduction

Our DTH drill bits represent our most successful product line, developed through years of continuous innovation and practical field experience. We have established comprehensive expertise in both manufacturing processes and design optimization.

By utilizing premium raw materials, implementing advanced processing technologies, and maintaining rigorous quality control standards, we guarantee that every DTH drill bit delivers exceptional performance and reliability.

These drill bits are extensively applied across multiple industries including geological exploration, coal mining, water conservancy projects, hydropower development, highway and railway construction, bridge building, and general construction engineering.

Product Features

Ingenious Design: Engineered for high penetration rates and extended service life
Application-Oriented Configuration: Multiple bit designs available to suit various rock formations
Superior Wear Resistance: Constructed from high-grade steel with advanced heat treatment for maximum durability
User-Friendly & Cost-Effective: Easy operation and long-term economic efficiency

Technical Specifications - DHD340 Ballistic Button/Spherical Face

Diameter (mm)	Diameter (inch)	Front Buttons	Gauge Buttons	Flushing Holes	Weight (kg)
110	4 3/8	4×14, 2×14	8×14	2	9.3
115	4 1/2	4×14, 2×14	8×14	2	10
121	4 3/4	4×14, 2×14	8×14	2	11
127	5	4×14, 3×14	8×14	2	12
130	5 1/8	4×14, 3×14	8×16	2	14
133	5 1/4	4×14, 3×14	8×16	2	15
