| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | MIROC |
| Orzecznictwo: | ISO |
| Numer modelu: | Dhd3.5-95 mm |
| Minimalne zamówienie: | 1 |
|---|---|
| Czas dostawy: | 20-30 |
| Możliwość Supply: | 3000 |
| Stosowanie: | Wiercenie studni, górnictwo, budownictwo, wydobywanie | Kształt - Twarz: | Płaskie lub wklęsłe lub wypukłe |
|---|---|---|---|
| Ciśnienie powietrza: | Wysokie ciśnienie powietrza | Technologia: | Wkładka tematyczna |
| Typ: | Wiertło udarowe DTH | Tworzywo: | Stal ze stopu |
| Jakość: | 100% podobieństwa jakości światowych marek najwyższej klasy | Zalety: | Wysoka jakość i ceny fabryczne |
| Podkreślić: | DTH hammer drill bit for mining,95mm rock drilling tool,water well drilling rig bit |
||

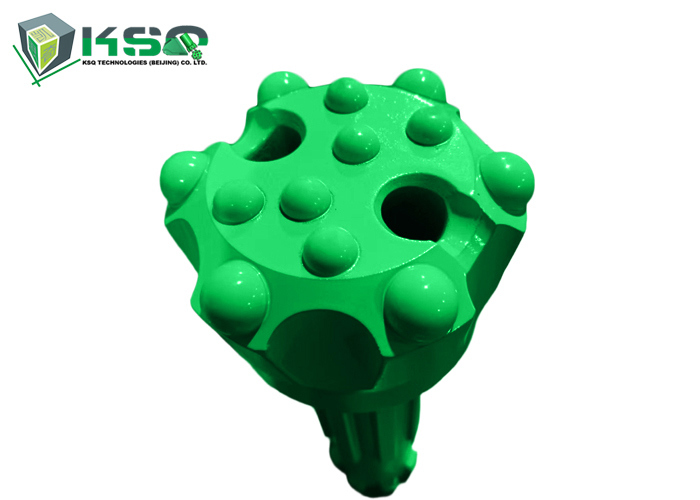

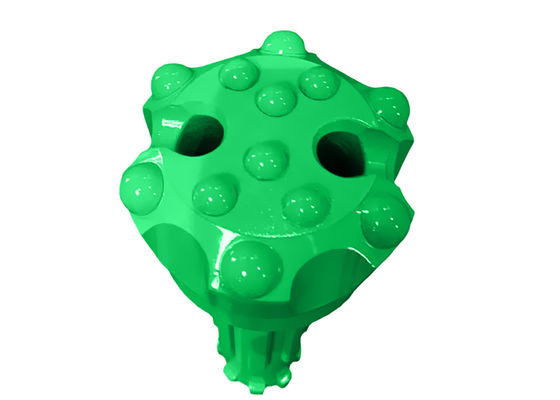

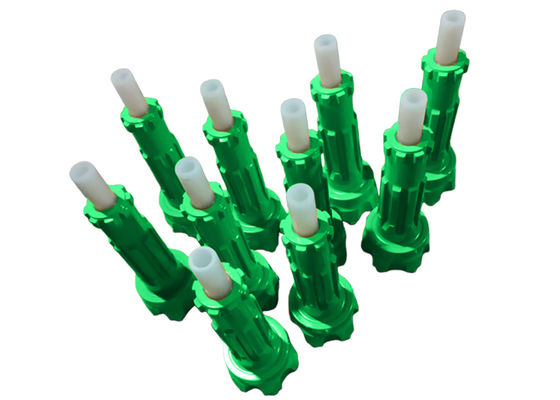

The DHD3.5 drill bit is a common DTH hammer drill bit model, widely used in mining, geological exploration, water well drilling, and construction projects. It connects with the drill pipe through API standard threads to ensure stability and reliability.
Manufactured with high-quality materials and advanced technology, the DHD3.5 drill bit offers extended service life and reduced replacement frequency.
This high air pressure DTH drill bit features our newest design and represents one of the most advanced DTH drill bits available worldwide.
Ideal for use in mining, energy, metallurgy, geology, coal, water conservancy, chemical industry, and road construction applications.
| Bit Diameter (mm) | Bit Diameter (inch) | Buttons (Front) | Buttons (Gauge) | Flushing Holes | Weight (kg) | Part Number |
|---|---|---|---|---|---|---|
| 90 | 3 1/2 | 4×12, 2×12 | 8×12 | 2 | 4.5 | 4148301219 |
| 95 | 3 3/4 | 4×12, 2×12 | 8×12 | 2 | 4.8 | 4148301220 |
| 100 | 3 7/8 | 4×13, 2×13 | 8×13 | 2 | 5 | 4148301221 |
| 105 | 4 1/8 | 4×14, 2×14 | 8×14 | 2 | 5.5 | 4148301222 |
| Bit Diameter (mm) | Bit Diameter (inch) | Buttons (Front) | Buttons (Gauge) | Flushing Holes | Weight (kg) | Part Number |
|---|---|---|---|---|---|---|
| 90 | 3 1/2 | 6×12 | 8×12 | 2 | 4.5 | 4148301223 |
| 95 | 3 3/4 | 6×12 | 8×12 | 2 | 4.8 | 4148301224 |
| 100 | 3 7/8 | 6×13 | 8×13 | 2 | 5 | 4148301225 |
| 105 | 4 1/8 | 6×14 | 8×14 | 2 | 5.5 | 4148301226 |
