Name: Custom High Quality Rock Drilling Tools R32-51mm-Retract bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R32-51 mm
Price: 508.50 USD
Availability: InStock

Dom Produkty Narzędzia do wiercenia w kamieniu

Custom High Quality Rock Drilling Tools R32-51mm-Retract bit

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	MIROC
Orzecznictwo:	ISO
Numer modelu:	R32-51 mm

Zapłata:

Minimalne zamówienie:	1
Czas dostawy:	20-30
Możliwość Supply:	3000

Kontakt

Szczegółowy opis produktu

Typ:	Wiertło do skał	Tworzywo:	Węglanki ze stopu stali i wolframu
Stosowanie:	Wiercenie skalne	Klasa:	Średnio twardy
Aplikacja:	Dryfowanie i tunelowanie	Twarz:	Płaski bit twarzy, wypukły bit twarzy, wklęsły bit twarzy
Proces:	Kucie + obróbka skrawaniem + obróbka powierzchni	Kształt przycisku:	Sferyczne/balistyczne/paraboliczne/ostre/faltowe dna
Dziury portowe:	zgodnie z prośbą
Podkreślić:	R32 retract rock drill bit , 51mm rock drilling tools , custom retract drill bit

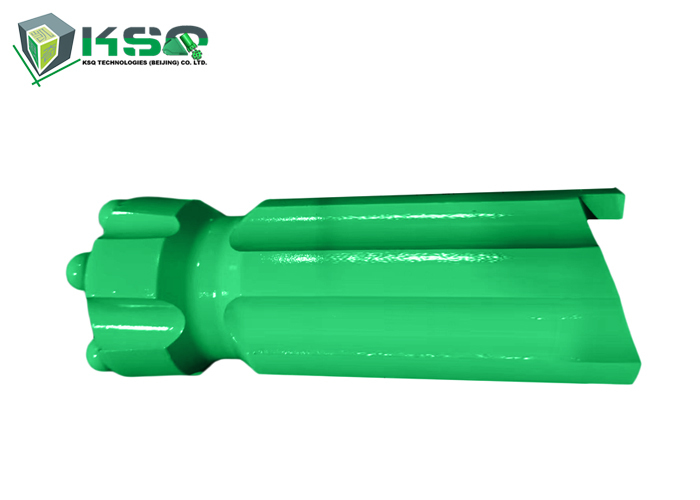

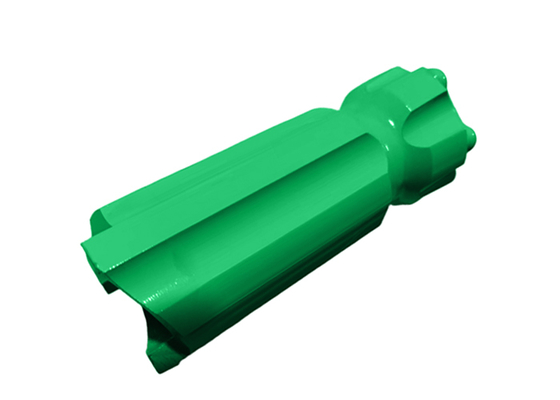

Custom High Quality Rock Drilling Tools R32-51mm-Retract Bit

Features & Benefits

Different front designs for various rock formations
Longer service life
Improved hole straightness
Lowest cost per meter drilled

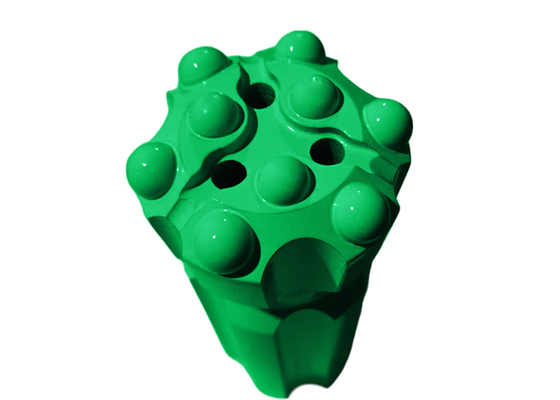

R32 51mm thread button bit is used for tunneling and underground mining, which is very cost effective when compared to other famous brands. Our R32 button bit is made with high quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.

According to different drilling applications, we have different designs to meet customers' needs with good quality and competitive pricing.

Specification of Button Bit

Thread	Diameter Range	Skirt Design	Face Design	Button Design
R22	35 - 45mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R25	33 - 57mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R28	36 - 51mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R32	41 - 89mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
R35	48 - 51mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
R38	64 - 102mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T38	57 - 102mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T45	70 - 127mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T51	76 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T60	89 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
ST58	89 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
GT60	93 - 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
ST68	102 - 152mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
